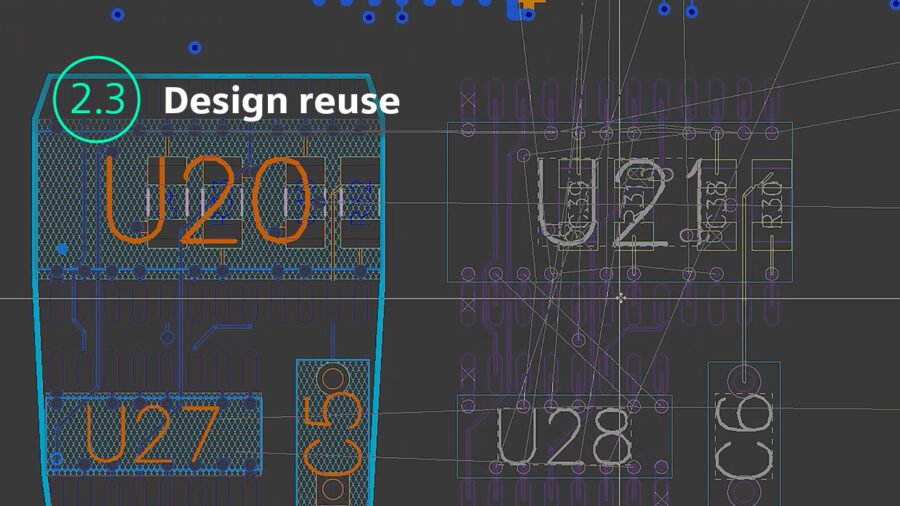

PCB Design Workflow & Best Practices for Production-Ready Electronics

You've got a brilliant idea, a clear schematic in your head, and now it's time to transform that vision into a tangible electronic product. But bridging the gap between a circuit diagram and a high-performance, manufacturable circuit board is where the real engineering magic – and potential headaches – begin. This comprehensive guide will walk you through the essential PCB Design Workflow & Best Practices, ensuring your next electronics project moves smoothly from concept to a production-ready reality, avoiding costly pitfalls along the way.

At a Glance: Your PCB Design Checklist

Start with a Solid Schematic: Organize logically, use standard symbols, and perform thorough ERC.
Plan Your Layout Strategy: Define board outline, stackup, and key component positions early.
Prioritize Placement: Group components by function, separate analog/digital, and place decoupling capacitors right next to ICs.
Route with Precision: Use appropriate trace widths/spacing, 45° angles, and minimize vias on critical nets.
Master High-Speed Design: Implement techniques for Signal Integrity (SI), Impedance Matching, Power Integrity (PI), and EMI management.
Design for Manufacturing (DFM) & Assembly (DFA): Adhere to manufacturer rules for reliable fabrication and smooth assembly.
Simulate and Verify: Catch potential issues before committing to costly prototypes.
Document Everything: Clear notes, specs, and version control are your best friends.

The Foundation: Why Design Rules Matter (And Why You Should Care)

Think of PCB design rules as the blueprint for success. They're not just arbitrary constraints; they are the distillation of decades of engineering wisdom, preventing costly redesigns, frustrating signal integrity (SI) failures, and manufacturing nightmares. Neglecting these rules is akin to building a house without considering the foundation or load-bearing walls – it might stand for a bit, but it's destined for trouble.
These rules broadly categorize into three crucial stages of your design journey:

Schematic Rules: The logical integrity of your circuit.
Layout Rules: The physical realization of that circuit on a board.
Manufacturing Rules (DFM/DFA): The practicalities of physically building and assembling your design.
Adhering to them transforms a mere drawing into a functional, reliable, and cost-effective product.

Phase 1: Architecting Your Vision – Schematic Design Best Practices

Before a single copper trace is laid, your schematic sets the stage. It's the logical heart of your design, and a well-organized, error-free schematic is paramount for a smooth layout process.

Grouping for Clarity: Hierarchical Design

Imagine trying to read a novel without chapters or paragraphs. That's what a flat, unorganized schematic can feel like. Instead, group related circuits by function into hierarchical sheets. Think "Power Supply," "MCU Core," "RF Section," or "USB Interface." This modular approach makes complex designs manageable, easier to debug, and simpler for collaborators to understand.

The Art of Legibility: Signal Paths & Naming Conventions

Strive for visual flow. Arrange symbols so that signals generally flow from left to right, with inputs on the left and outputs on the right. This intuitive structure drastically improves readability. Equally important are clear, descriptive net labels. Instead of generic "NET123," use names like +5V_DDR, +3V3_RF, SPI_CLK, or MCU_RESET. These names not only make debugging easier but also allow you to assign specific layout rules (like impedance requirements) to critical nets later on.

Your Digital Toolkit: Standard Symbols & Verified Libraries

Your PCB design software relies on libraries for component symbols and their associated footprints. Always use standard, well-maintained symbols from trusted libraries. An incorrect footprint is one of the most common and frustrating beginner mistakes, leading to parts that simply won't fit the board. Double-check your library components against datasheets, especially for critical parts, before committing to layout.

Catching Errors Early: The Power of Electrical Rule Checks (ERC)

This is your first line of defense against logical errors. An Electrical Rule Check (ERC) tool, available in all major PCB layout software, can detect issues like unconnected pins, shorted outputs, power nets connected to ground, or incorrect pin types connected together. Run ERC early and often. It's far cheaper to fix an error on a schematic than on a physical prototype.

Communicating Intent: Annotation & Documentation

Layout engineers (even if that's you!) need clear guidance. Use notes, comments, and specific instructions on your schematic for critical layout requirements. Examples:

"Place C5 as close as possible to U1 pin 6 for decoupling."
"50-ohm impedance required for RF_ANT signal."
"Keep digital traces away from analog section."
This documentation bridges the gap between the schematic's electrical truth and the layout's physical realization.

Phase 2: Bringing Your Vision to Life – PCB Layout Guidelines

With your schematic buttoned up, it's time to translate that electrical blueprint into a physical board. This phase is where your strategic decisions directly impact performance, manufacturability, and cost.

Setting the Stage: Board Outline, Constraints, and Stackup

Before placing a single component, define your board's physical boundaries. This includes:

Board Outline: The exact mechanical shape.
Mounting Holes: For securing the board in its enclosure.
Critical Component Locations: Lock down connectors, buttons, and other fixed components that interface with the outside world or enclosure.

Choosing Your Layers: 2, 4, or 6+?

The number of layers is a fundamental decision impacting cost, performance, and complexity.

2-Layer Boards: Economical and suitable for simple, low-speed designs with minimal noise concerns. Routing space is limited, often leading to longer traces and potential EMI issues.
4-Layer and Multilayer Boards: The standard for modern, complex designs. They offer dedicated inner planes for Ground (GND) and Power (VCC), which are absolutely critical for:
Stable Signal References: A solid ground plane provides a consistent return path for signals, crucial for signal integrity.
Enhanced Power Integrity: Dedicated power planes deliver clean, stable power across the board.
Streamlined Routing: Inner layers free up outer layers for high-density signal routing.

Typical Stackups Explained

A good stackup is the backbone of a high-performance board. It defines the order of conductive and dielectric layers.

Typical 4-Layer Stackup (1.6mm total thickness):
L1 (Signal Top): For component placement and high-speed signal routing.
L2 (GND Plane): Solid ground reference for L1 signals.
L3 (VCC Plane): Power delivery and reference for L4 signals.
L4 (Signal Bottom): For routing and sometimes components.
This stackup provides excellent power and ground planes, acting as shields and current return paths.
Typical 6-Layer Stackup (1.6mm total thickness):
L1 (Signal Top)
L2 (GND Plane)
L3 (Signal Internal)
L4 (VCC Plane)
L5 (GND Plane)
L6 (Signal Bottom)
This stackup offers even better noise isolation and routing density. The two ground planes (L2 and L5) are particularly useful for critical high-speed signals on L1, L3, and L6, providing very clean return paths.

Strategic Placement: Components Where They Belong

Placement isn't just about making things fit; it's about optimizing performance, thermal management, and manufacturability.

Prioritize Essential Components: Start with connectors, microcontrollers (MCUs), power sources, and any components with fixed mechanical locations.
Group by Function: Keep functional blocks together (e.g., the entire power supply section, RF module, memory interface). This minimizes trace lengths within a block and simplifies routing.
Separate Analog, Digital, and Power: Physically segregate these sections as much as possible to prevent interference. Analog components are sensitive to digital switching noise, and high-current power sections can create large magnetic fields.
Decoupling Capacitors: Your Power Integrity First Line of Defense: This is a non-negotiable best practice. Place decoupling (or bypass) capacitors immediately adjacent to the VCC/GND pins of every active IC. These small capacitors provide a local reservoir of charge, smoothing out transient current demands and preventing noise from propagating across your power rails. Failing to do this correctly is one of the most common causes of unstable circuits.

The Art of Connection: Routing Basics

Once components are placed, it's time to connect them.

Trace Width and Spacing (Clearance)

Trace Width: Determined by the current it needs to carry and the permissible temperature rise. Wider traces carry more current with less resistance and heat. For instance, a 0.5A trace on a 1oz copper board (internal layer) might need to be 10 mil, while a 2oz copper board could reduce that to 5 mil. Online trace width calculators are invaluable here.
Spacing (Clearance): The minimum distance between traces, pads, or other copper features. This depends on the voltage difference between them and your manufacturer's capabilities. Higher voltages require larger clearances to prevent arcing. Always check your manufacturer's specific DFM guidelines for minimum trace/space.

Angles and Vias: Navigating the Board

Routing Practices: Keep traces as short and direct as possible. This minimizes resistance, inductance, and susceptibility to noise.
45° Angles: Always use 45° angles for turns, avoiding sharp 90° angles. While modern manufacturing processes can handle 90° turns, they create impedance discontinuities (sudden changes in impedance) which can reflect high-frequency signals and potentially trap etching chemicals during fabrication.
Vias: Plated holes connecting different layers. Minimize their use on high-speed traces because each via adds parasitic inductance and capacitance, impacting signal integrity. When you must use them, use them sparingly and symmetrically for differential pairs.

Power & Ground Planes: The Unsung Heroes of Stability

On 4-layer (or more) boards, your ground and power planes are critical for robust performance.

Solid and Continuous Ground Planes: Your ground plane should be as solid and uninterrupted as possible. It provides a low-impedance return path for all your signals, acting as a shield against EMI.
Avoid "Split" Ground Planes: Never route high-speed traces over a "split" in a ground plane (where the plane is cut or gapped). This forces return currents to take a long, convoluted path, creating large current loops that act as efficient antennas, leading to significant EMI and signal integrity failures. Keep your ground planes solid beneath your signals.
For a deeper dive into the fundamental concepts of circuit board layouts, consider getting started with PCB design.

Phase 3: Mastering the Finer Details – Advanced Layout for Performance

For high-speed, high-frequency, or sensitive analog designs, the basic routing rules aren't enough. You need to consider advanced concepts to ensure your signals and power remain clean.

Keeping Signals Clean: Signal Integrity (SI) Explained

Signal Integrity (SI) ensures that signals transmitted from one point are received accurately at another, without distortion, reflections, or excessive noise. Poor SI leads to unreliable operation, data errors, and unexpected behavior.

Short Traces Over Solid Ground: Always route high-speed traces as short as possible and, crucially, over a solid, unbroken ground plane. This minimizes inductance and provides a clear return path.
The "3W" Rule for Crosstalk Prevention: Crosstalk occurs when a signal on one trace induces noise onto an adjacent trace. To minimize this, maintain ample distance between parallel traces. The "3W" rule suggests that the distance between the center of two adjacent traces should be at least three times the width of a single trace. For example, if your trace width is 5 mil, the spacing should be at least 15 mil. This applies especially to parallel runs longer than a few millimeters. For more insights into these phenomena, explore understanding signal integrity.

Precision Transmission: Impedance Matching

For high-frequency signals (e.g., USB 2.0/3.0, Ethernet, RF, DDR memory, PCIe), the impedance of the transmission line (your trace) must match the source and load impedance.

Common Impedances: Typically 50Ω for single-ended signals and 90-100Ω for differential pairs.
Controlling Impedance: Trace impedance is controlled by several factors:
Trace Width: Wider traces generally have lower impedance.
Dielectric Material: The type and thickness of the insulating material (FR4 being common) between layers.
Distance to Reference Plane: The closer the trace is to its solid ground (or power) reference plane, the lower its impedance.
Failure to match impedance leads to reflections, which manifest as signal distortion and reduced performance.

High-Speed Highways: Designing Differential Pairs

Differential pairs consist of two traces (ee.g., D+, D-) carrying equal and opposite signals. They are the go-to choice for high-speed communication (USB, Ethernet, PCIe, LVDS) because they are highly resistant to common-mode noise.

Key Principles:
Parallel and Identical Length: Route them tightly parallel and ensure their lengths are matched as precisely as possible. Most EDA tools have length-matching features.
Consistent Gap: Maintain a consistent, small gap between the two traces. This gap, along with trace width and distance to the reference plane, determines the differential impedance.
Symmetry: Route them symmetrically, avoiding sharp bends.
Minimize Vias: If vias are unavoidable, use them symmetrically on both traces to maintain impedance and common-mode rejection.

Clean Power, Clear Signals: Power Integrity (PI) Strategies

Power Integrity (PI) is about delivering stable, clean power to all active components, minimizing voltage drops and noise on the power rails. Just as SI affects signal quality, PI affects circuit reliability and performance.

Solid Power Plane: On multilayer boards, a solid power plane (VCC) helps distribute power efficiently and acts as a shield.
Decoupling Capacitors (Revisited): This is paramount for PI. You need a hierarchy of decoupling capacitors:
Bulk Capacitance (1-10µF): Placed at power entry points or near power-hungry ICs to handle low-frequency current fluctuations.
High-Frequency Decoupling (0.1µF, 0.01µF): Placed as close as possible to the IC's power pins (literally right next to them) to filter out high-frequency noise generated by switching transients. Use multiple values to cover a broader frequency spectrum.
Proper capacitor placement and selection are critical for advanced power delivery networks and overall system stability.

Shielding Your Circuit: Electromagnetic Interference (EMI) Management

EMI (Electromagnetic Interference) is the unwanted noise generated by your board that can interfere with other electronics, or the susceptibility of your board to external noise. Good EMI design prevents your product from being a noisy neighbor or from failing in noisy environments.

Solid Ground Plane as a Shield: A continuous ground plane is your best defense, acting as a shield and providing a low-impedance return path.
Minimize Current Loops: Keep high-frequency traces short to minimize the area of current loops, which are efficient radiators of EMI.
Filtering Components: For sensitive RF sections or power inputs, use filtering components like ferrite beads and choke inductors to block or absorb high-frequency noise.
Metal Shielding: For highly sensitive circuits (e.g., RF modules), consider adding metal shielding cans.

Phase 4: Ensuring Manufacturability & Assembly – DFM/DFA

Even the most brilliant electrical design is useless if it can't be reliably fabricated and assembled. This is where Design for Manufacturability (DFM) and Design for Assembly (DFA) come in.

Design for Manufacturability (DFM): Building the Bare Board

DFM rules focus on the reliable fabrication of the bare PCB. These are largely dictated by your chosen PCB manufacturer's capabilities.

Manufacturer-Specific Minimums: Always consult your manufacturer's specific guidelines for:
Minimum Trace Width/Spacing: (e.g., 5mil/5mil is common, but some offer smaller).
Minimum Drill Size: The smallest hole they can reliably drill.
Annular Ring Requirements: The minimum amount of copper surrounding a drilled hole (via or pad) to ensure a robust connection.
Solder Mask Clearance: The distance between the solder mask opening and the copper pad.
Panelization Considerations: If your board will be panelized (multiple boards on a larger panel for manufacturing efficiency), ensure proper spacing for breakaway tabs and scoring.
Copper Weight: Higher copper thickness (e.g., 2oz / 70µm) allows narrower traces for the same current, but also affects minimum trace width and cost.

Design for Assembly (DFA): Putting It All Together

DFA rules ensure that components can be efficiently and accurately placed and soldered onto your board, whether by hand or, more commonly, by automated pick-and-place machines.

Component Spacing: Ensure sufficient space between components for automated pick-and-place nozzles, reflow soldering, and future rework. Overly cramped components increase assembly costs and rework difficulty.
Accurate PCB Library Footprints: Again, verify footprints against datasheets. An incorrectly sized pad or silkscreen outline can halt assembly.
Fiducial Marks: Place three fiducial marks (small copper circles exposed through the solder mask) on the board (typically in a non-symmetrical L-shape) for automated optical alignment by pick-and-place machines.
Consistent Orientation: For polarized components (diodes, LEDs, electrolytic capacitors, ICs), ensure consistent orientation across your design. This speeds up assembly and reduces errors. For a deeper understanding of these manufacturing considerations, review DFM considerations.

Beyond the Basics: General Best Practices & Pitfalls to Avoid

Even with all the rules, some overarching principles and common missteps can make or break your design.

Simulate Before You Fabricate: Testing Early

Modern EDA tools offer simulation capabilities for Signal Integrity (SI), Power Integrity (PI), and even thermal performance. Utilize these tools to identify potential issues before you spend money on prototypes. Running a simple SI simulation on critical high-speed traces can save days of debugging later.

Common Mistakes That Haunt New Designers

Forgetting or Misplacing Decoupling Capacitors: The #1 culprit for unstable digital circuits. They need to be right next to the IC pins.
Broken or Sliced Ground Planes: Routing traces through ground planes, creating "islands" or splitting return paths, is a recipe for EMI and SI disaster.
Incorrect Component Footprints: Leads to parts not fitting or poor solder joints. Always double-check.
Violating Manufacturer DFM Rules: Results in boards that can't be manufactured, or require expensive rework.
Ignoring Thermal Management: Overheating components lead to premature failure. Consider heatsinks, thermal vias, and copper pours for high-power components.
Lack of Documentation: A poorly documented design is a headache for anyone trying to understand, modify, or troubleshoot it.

Rules vs. Standards: What's the Difference?

PCB Design Rules: These are specific, measurable constraints configured in your EDA software (e.g., "minimum trace width: 6 mil," "clearance: 5 mil"). They are often based on your specific manufacturer's capabilities.
Standards (e.g., IPC, ISO): These are industry-wide guidelines and specifications (e.g., IPC-2221 for generic design standard, IPC-A-610 for acceptability of electronic assemblies). They provide a framework for quality and reliability across the industry, informing the specific rules you set.

Understanding Vias: Thru-hole, Blind, and Buried

Vias connect different layers of your PCB. Choosing the right type impacts cost and density.

Thru-hole Vias: Go completely through the entire board, from the top layer to the bottom. Most common and least expensive.
Blind Vias: Connect an outer layer to an internal layer, but don't go all the way through the board. They save space on internal layers.
Buried Vias: Connect two internal layers and are completely enclosed within the board. They save space on outer layers.
Blind and buried vias are more expensive to manufacture due to additional drilling and plating steps but are essential for high-density, compact designs.

Your Path to Production-Ready PCBs

Crafting a robust, high-performance PCB is an iterative process, demanding attention to detail at every step. It’s a dance between electrical requirements, mechanical constraints, and manufacturing realities. By diligently following these PCB Design Workflow & Best Practices, you're not just creating a circuit board; you're engineering a reliable, production-ready piece of electronics.
Remember to plan strategically, prioritize signal and power integrity, lean on simulation tools, and always, always keep your manufacturer's capabilities in mind. The effort you put in upfront will pay dividends in reduced development time, lower costs, and a product that performs exactly as intended. Now go forth and design!
